具有座進，座通功能，可使射嘴不死料，清料容易，壽命更長，品質穩定。
|
||||||||||||||||||||||||||||||||||||||
|

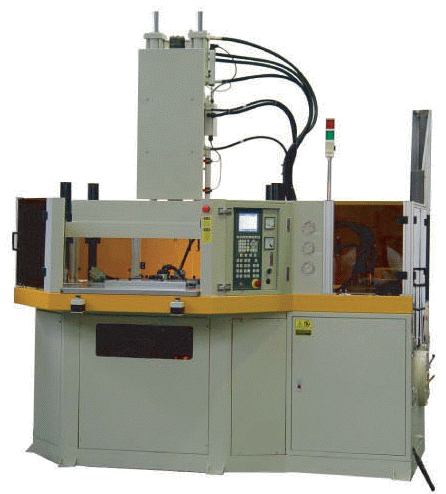

LSR
液態矽膠射出成型機
|
|
MAIN SPECIFICATIONS |
||
| MODEL | K1000-190-60DVR-1 | |
| INTERNATIONAL SIZE | 190-6 | |
|
INJECTION UNIT |
||
| Screw Diameter | 螺桿直徑 | 40mm |
| Injection Pressure | 射料壓力 | 98kgf/cm2 |
| Injection Capacity | 理論射出容積 | 188cm3 |
|
Injection
Weight
|
最大射出量
|
200gr |
|
Injection Rate |
射出率 |
107cc/s. |
|
Screw Speed |
螺桿迴轉數 |
0~170r.p.m. |
|
Screw Stroke |
螺桿行程 |
150mm |
|
Nozzle Stroke |
噴嘴行程 |
180mm |
|
Nozzle Contact Force |
噴嘴頂力 |
3.8Tf |
| CLAMPING UNIT | ||
|
Clamping System |
夾模方式 | Hydraulic |
|
Clamping Force |
夾模力 | 60Tf |
|
Opening Stroke |
夾模行程 | 200mm |
|
Mould Space |
最大空間 | 430mm |
|
Overall Size of Rotary |
轉盤尺寸 | Ø1000mm |
|
Space Between Columns (H*V) |
柱內尺寸 | 1000*180mm |
|
Rotary Method |
轉盤方式 | 180º |
| Ejector | 頂出方式 | Hydraulic |
| Ejector Force | 頂出力 | 2.6Tf |
| Ejector Stroke | 頂出行程 | 70mm |
| ELECTRICAL EQUIPMENT & GENERAL | ||
| Power Source / Voltage | 電源 |
380V/50Hz
220V/60Hz |
| Drive Motor | 電動機 | 7.6KW(400V) |
| Chiller | 冰水機 | X |
| Number of Temperature Control Zone | 溫控點 | 2 |
|
MISCELLANEOUS |
||
| Pressure in Hydraulic System | 系統壓力 | 190Kgf/cm2 |
| Dimension of Machine (L*W*H) | 機械尺寸 | 2.4*165*2.7M |
| Weight of Machine | 重量 | 2500Kg |
