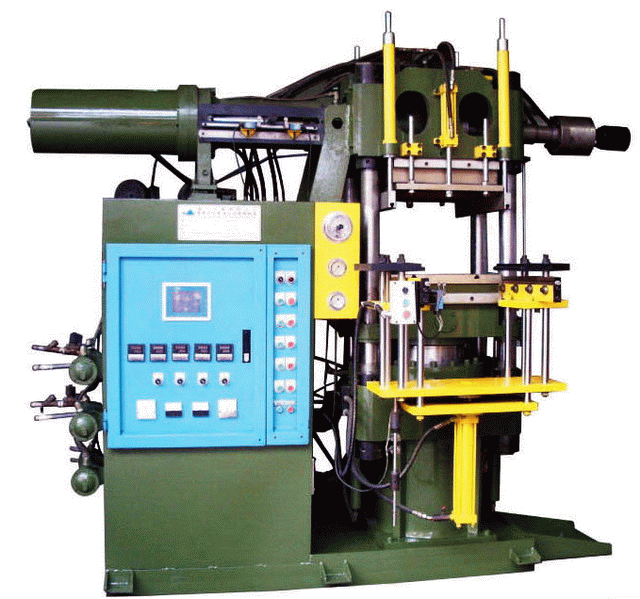

Computer-Controlled Automatic
Rubber Injection Oil Pressure Machine
|
|
|
|
With base forward and base through
function , the nozzle will not be blocked and easy to be cleaned. The
life is longer and the quality is stable.
| Out
put |
200 t |
300 t |
500 t |
| Stroke |
500 mm |
560 mm |
600 mm |
| Plate
Size |
500x550 mm |
580x600 mm |
700x700 mm |
| Cylinder
Diameter |
355 mm |
460 mm |
560 mm |
| Injection
Volume |
1600 c.c. |
3000 c.c. |
4500 c.c. |
| Open
Mold |
Up and down |
Front ejector opening mold |
In and out front ejector |
| Pump-using
power |
10 HP |
20 HP |
25 HP |
|
Single
shaft electrical heat capacity
|
10 KW
|
14.4 KW
|
17.6 KW |
|
Power
|
20 KW
|
28 KW
|
32.5 KW
|
|
| |
Liquid
Silicon Rubber Injection Molding Machine (LSR)
|
|
|
|
MAIN
SPECIFICATIONS
|
| MODEL |
K1000-190-60DVR-1 |
| INTERNATIONAL
SIZE |
190-6 |
|
INJECTION
UNIT |
| Screw
Diameter |
40mm |
| Injection
Pressure |
98kgf/cm2 |
| Injection
Capacity |
188cm3 |
|
Injection
Weight
|
200gr
|
|
Injection
Rate
|
107cc/s.
|
|
Screw
Speed
|
0~170r.p.m.
|
|
Screw
Stroke
|
150mm
|
|
Nozzle
Stroke
|
180mm
|
|
Nozzle
Contact Force
|
3.8Tf
|
|
CLAMPING UNIT
|
|
Clamping
System
|
Hydraulic
|
|
Clamping
Force
|
60Tf
|
|
Opening
Stroke
|
200mm
|
|
Mould
Space
|
430mm
|
|
Overall Size of Rotary
|
Ø1000mm
|
|
Space
Between Columns (H*V)
|
1000*180mm
|
|
Rotary Method
|
180º
|
|
Ejector
|
Hydraulic
|
|
Ejector Force
|
2.6Tf
|
|
Ejector Stroke
|
70mm
|
|
ELECTRICAL EQUIPMENT &
GENERAL
|
|
Power Source / Voltage
|
380V/50Hz 220V/60Hz
|
|
Drive Motor
|
7.6KW(400V)
|
|
Chiller
|
X
|
|
Number of Temperature
Control Zone
|
2
|
|
MISCELLANEOUS
|
|
Pressure in Hydraulic System
|
190Kgf/cm2
|
|
Dimension of Machine (L*W*H)
|
2.4*165*2.7M
|
|
Weight of Machine
|
2500Kg
|
|
